糧食倉電動葫蘆

文章出處:qianheqin.com/ 人氣:213 發表時間:

    糧食倉電動葫蘆
糧食倉電動葫蘆技術特性:一、動載實驗是額定載荷1.25倍。二、2000次的全稱測試保證質量。三、最小破斷載荷是額定載荷的4倍。
鋼板倉電動葫蘆 20年品牌廠家,顏色、起升高度都可定制 價格:(電話詳談)
型號:DHP
品牌:宇雕
用途:工礦、企業、倉儲、碼頭
產品售出質保維護兩年(圖) 起升重量:5-30t
可提升高度:3m
材質:合金鋼
中國人保保險保障,保證個人/批發商權益 質保維護:2年
是否可定制:(電聯)
特殊種類:
使用說明(看下方說明)
技術特性:四、80級起重鏈條。五、鍛造熱處理的起重上下鉤。六、雙棘爪制動系統。七、無石棉剎車

 糧食倉電動葫蘆詳細信息:
產品介紹:

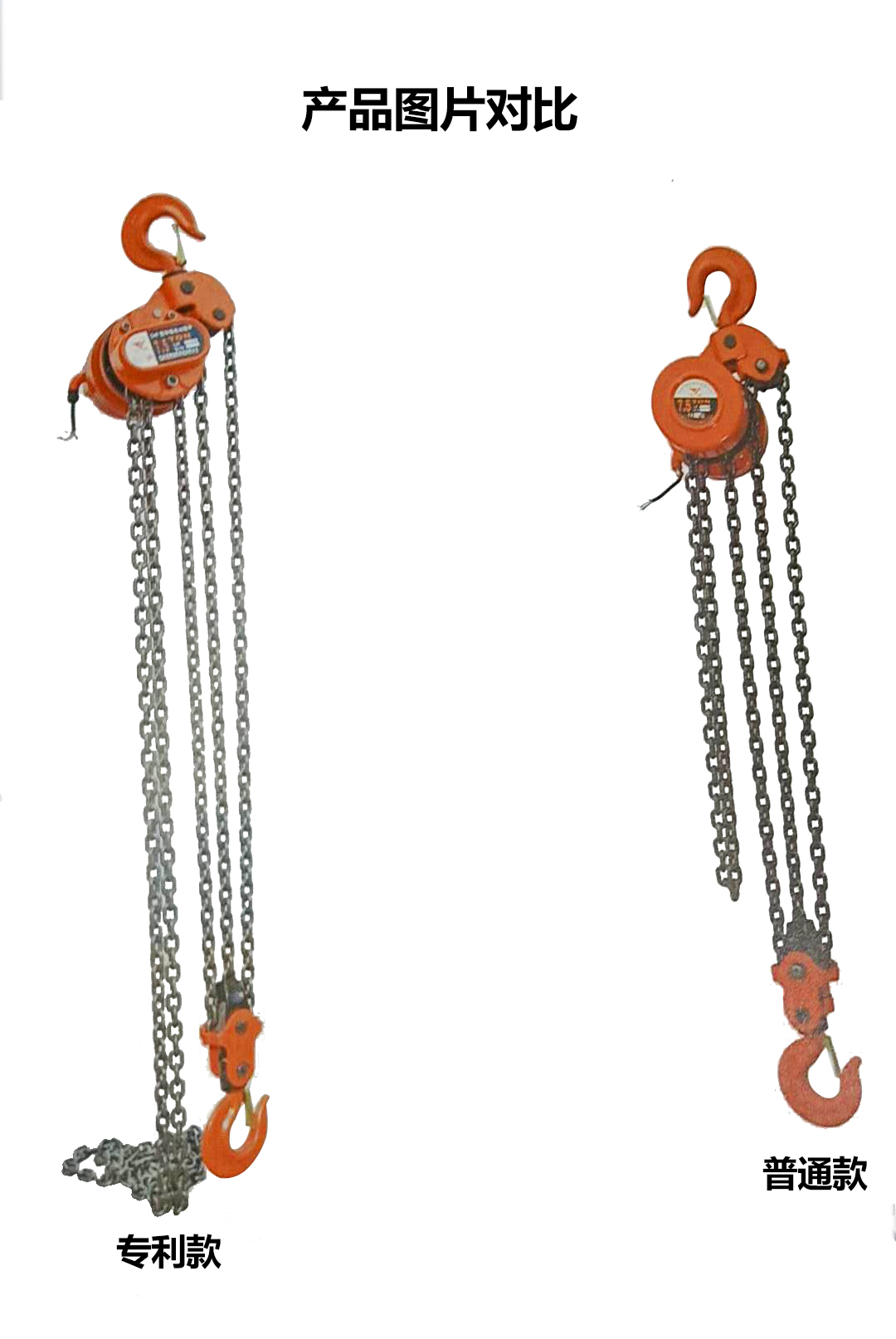

  此款電動葫蘆是宇雕自主生產的專利款。與通款比較有以下優點:

  專利款采用新型尾環裝置,便于鏈條的拆卸和安裝。通款采用的是傳統的尾環裝置,更換或維護鏈條比較雜,需要將機頭拆開才可以對鏈條進行拆卸和安裝。

  專利罩殼是一體加厚罩殼,厚度達4.5mm,罩殼配有三個軸承。普通款罩殼厚度1.2mm。

  專利款是加長五齒長軸,配合罩殼軸承進行軸轉動,齒輪與軸承的嚙合更緊密,傳動更靈活,噪音小,摩擦力小。

糧食倉電動葫蘆
This type of electric hoist is the patent of independent production of Yu carving. Compared with the following advantages, there are the following advantages:
The new type of tail ring device is adopted to facilitate the demolition and installation of the chain.
The use of the traditional tail ring device, replacement or maintenance of the chain is more complicated, the need to disconnect the head before the chain can be dismantled and installed.
The patent cover is an integral thickened cover with a thickness of 4.5mm and a three shell bearing. The thickness of the ordinary cover shell is 1.2mm.
The patent is a lengthened five teeth long shaft, which rotates with the axle housing bearing, the gear and the bearing mesh more closely, the transmission is more flexible, the noise is small, the friction force is small.

  產品分類:電動葫蘆系列
結構組成:
1、宇雕這次用的尾環是創新技術的尾環設計?! ?br style="margin: 0px; padding: 0px; list-style-type: none;" /> 2、4.5毫米的罩殼設計,罩殼可以防止沖擊,
3、抗外部沖擊的齒輪箱及外殼,采用合金鋼罩殼,受到?jīng)_擊時不易受損。
4、使用時噪音小摩擦小。

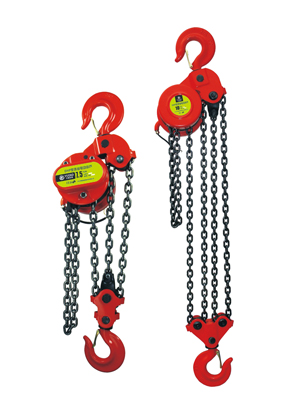

產品詳情圖片:



板倉葫蘆可以使用的范圍:礦區、在油氣平臺、造船場所、運輸,森林地帶等、橋梁建筑等、

適合在任何地方進行提升和下降,以及大型機器和設備提升和加固時受限制的時候更便于使用此機器。

宇雕小編還為大家準備了table表格版:

型 號 DHP5T DHP7.5T DHP10T DHP20T DHP30T
額定載荷 5 7.5 10 20 30
試驗載荷(Gn) 1.25 1.25 1.25 1.25 1.25
電機功率(kw> 0.5 0.5 0.5 0.5 0.75
開關類型
電源電壓 380v 50Hz
提升速度(m/min) 0.09 0.18 0.12 0.09 0.09 0.06
兩鉤間最小距離 200 600 660 730 1040 1480
起重鏈條行數 2 3 4 8 12
標準提升高度
起重鏈圓鋼直徑 10 10 10 10 10
凈 重 58 70 95 195 285
裝箱毛重 69 80 108 225 325
裝箱尺寸(長x寬x高)cm 56x40x40 50x42x39 61x48x48 70x60x44 95x81x53
起重高度每增加1米增加重量 4.4 6.6 8.8 17.6 25.2

  該款電動葫蘆產品特點

  使用簡單、便于攜帶、制動迅速、定位準確、精工制作、噪音低、運行平穩、受沖擊不易受損、結構緊湊、安全可靠。

 糧食倉電動葫蘆使用說明(注意事項)
1. The use of overloading is strictly prohibited.

2, prohibit oblique pulling and flat pulling. When lifting, it is strictly forbidden to walk or stay under or near the heavy objects
3, during the work, if the gourds do not rotate or have abnormal noise, they should stop immediately and then unload the inspection.
4, frequent use, refueling once a week, intermittent use, refueling once a month.
5, strictly prohibit collision, beating up hoist, storage should be dry and ventilated.
6. The maintenance of this product should be carried out by professional personnel. It should be operated under the guidance of professional personnel with certain mechanical and electrical knowledge. We should read the product instructions carefully before use.
7, must check whether the power supply meets the requirements before use, and operate according to the electrician standard, and check correctly and correctly.
8, the motor work mode is S4 (intermittent), when used, the motor should be prevented from burning for too long continuous working time or frequent braking times, ensuring that the motor's continuous running rate must not exceed 40% during each work, and the braking frequency should not be more than 4 times per minute.
9, before use, must check whether the brake is reliable, regularly check whether the parts are normal, there should be no loose, oil leakage and so on.
10, test run to check whether the sprocket and chain are meshed properly, and no stacking chain is allowed.
11. In the process of lifting and running, the chain is observed at any time; when the chain is collected and placed, it is not allowed to exceed the limit position; the lifting chain is not allowed to hang on other objects so as to avoid the overload.
12. This product can not be disassembled at will. If you need to change the chain or remove the maintenance, it must be directed by professional staff.
13. When the product is used at the same time in the group, the special electric control cabinet produced by the company must be configured so as not to affect the synchronism of its speed, and it is designed, installed and operated by the special person. The lifting should be carried out, the test operation should be empty, the connection parts, the lifting chain, the hook and so on are checked or not, and the length of the lifting chain should be adjusted before the lifting, so that the tensioning degree of the lifting chain of each product is consistent. During the promotion, the special person should observe each product, check whether to touch with other objects, whether there is abnormal sound or chain chain, it is found that abnormality should be stopped immediately and can be used until the trouble is excluded.

 河北宇雕的產品已經順利通過生產許可證、出口許可證、歐盟”CE””GS”等認證,

 且更不止于國內起重市場,還遠銷歐美、中東、東南亞等國家和地區,獲得了客戶的一致贊譽?! ?nbsp;
   歡迎廣大新老客戶來電咨詢!宇雕愿與您友好合作輝煌創輝煌!
